Svängkranslager

Infosidor > Övrigt
Product description

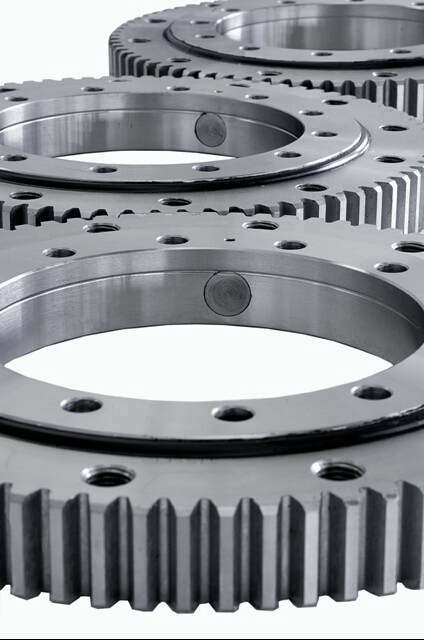

TG manufactures slewing rings up from an outer diameter of 200mm to 2000mm
for quite all applications in the following designs:
  • 22A
  • Four point contact bearings:
  • Light series bearings: 20.C – 32.C
  • Light series solid selection bearings: 20.B – 25.B
  • Other series bearings: 14.D – 16.D – 20.D – 22.D – 25.D – 32.D
  • Cross roller bearings: -R series
  • Special design bearings
  • U
  • TG-E

The bearings in standards design are made up of the Following components:
  • Bearing inner and outer rings with closing plug in one ring
  • Roller elements
  • Balls for four point contact bearings
  • Cylindrical rollers for crossed roller bearings
  • Plastic spacer or special spacers (i.a non-overturning spacer or bronze spacer)
  • Seals
  • Grease nipples

Bearing Rings
The material used for bearing ring is the following:
  • C 45 N
  • C 45 B
  • 42 CrMo 4 N
  • 42 CrMo 4 B

The hardness gap, which is the point between the beginning and the end of the raceway hardness,
is marked at the closing plug with a stamped “S” (see our selection installation).
