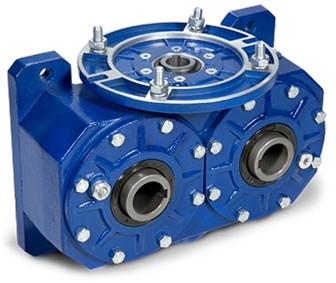

DOUBLE OUTPUT WORM GEARBOXES
SERIES VM

APS series includes gearboxes specially manufactured in order to comply with specifical requirements.
The kinematic motion is carried out by means of a wormshaft and two wormwheels in order to have two output shafts with a synchronous rotation.
These gearboxes can be assembled to electric motors or motorvariators equipped with a fixing flange with dimensions conforming to IEC specifications.

Casing and flanges: Made from aluminium and painted BLUE RAL 5010.
Worm screw: Made from alloy steel. Hardened and cemented then finished by grinding.
Worm wheel: UNI 7013 GcuSn12 bronze toothed band. Inserted by casting on UNI 5007 G20 cast-iron bushing.
Bearings: Taper roller bearings are mounted on the screw and the two outputs.
Lubrication: Gearboxes are normally supplied without any lubricant. However, they can be supplied with synthetic lubricant on request.
